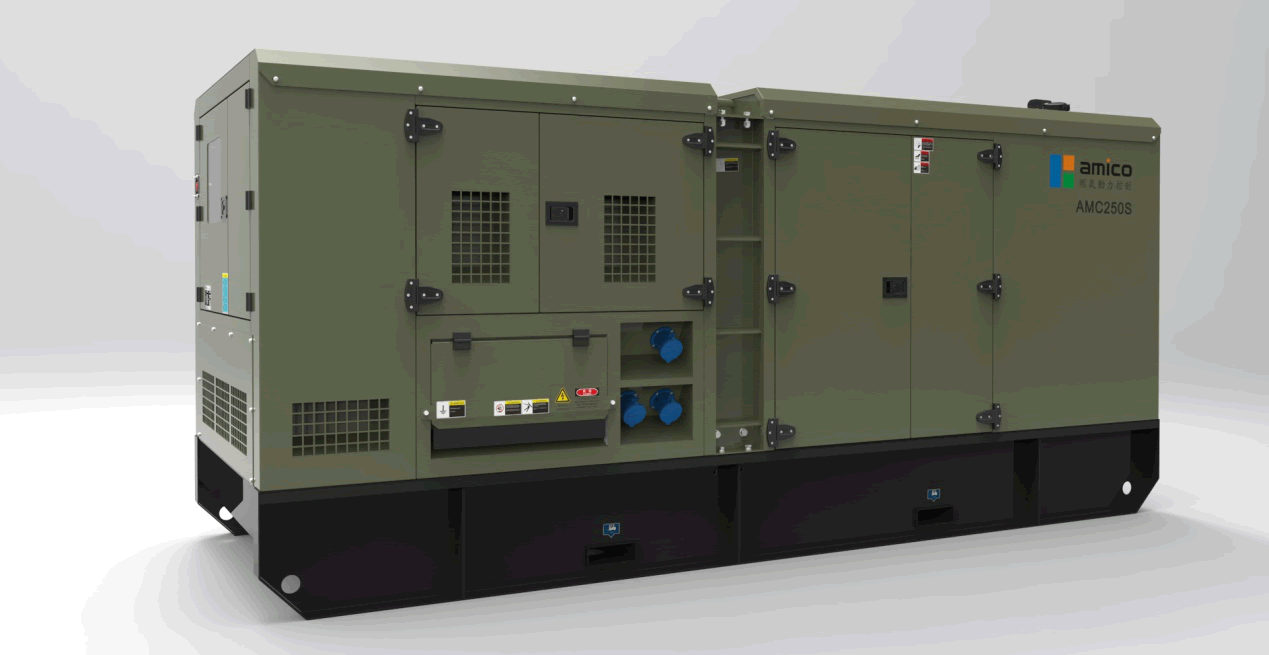

160kW AMICO Natural Gas Genset

Recommended Operation Conditions

1. CH4 Content of Gas ≥ 45%
2. Gas Pressure ≥ 3 kPa
3. Calorific Value ≥ 16 MJ/m³
4. H2S Content of Gas ≤ 20 mg/m³
5. Total Sulphur Content of Gas ≤ 460 mg/m³
6. Altitude ≤ 4,000 m
7. -25℃ ≤ Ambient Temperature ≤ +50℃

Advantages & Features

1. Our 160kW coalbed gas genset is equipped with reliable Steyr & AVL Tech. engine, Mecc Altea alternator and DEIF controller
2. This industrial gas generator set enjoys advanced lean-burn technology
3. Prompt dynamic response similar to diesel genset
4. Excellent power generation efficiency
5. This 160kW coalbed gas genset is adaptable for a wide range of gas pressure
6. Humanized manual, semi-auto and full-auto operation modes

Specification & Configuration

160kW Coalbed Gas Genset

Model AMC160GF4-RM
Prime Power 160 kW (200 kVA)
Rated Voltage 230/400 V
Rated Current 288.6 A
Rated Frequency 50 or 60 Hz
Power Factor 0.8
Gas Consumption 1.18 Nm³/kWh
Weight 1,850 kgs
Overall Size (L × W × H) 2,900 × 1,150 × 1,680 mm


Brand CNHTC (Steyr & AVL Tech.)
Model WT615
Type 6-cylinder, 4-stroke, turbocharged
Displacement 9.726 L
Compression Ratio 10.5
Ignition Electric control, independent ignition
Fuel Control Lean-burn, closed-loop control
Speed Control Electric control
Rated Speed 1500 rpm
Conversion Efficiency 39%


Brand Mecc Altea
Model ECO38-2SN/4
Type of Excitation System Brushless with AVR
Connection Type 3-Phase, 4-Line
Conversion Efficiency 93.1%


Brand DEIF
Model AGC222
Type Manual control, semi-auto control or full-auto control


Pedestal, radiator, air filter, muffler, battery and gas pressure reducer are included.
Soundproof equipment, engine oil, coolant and output cable are not included.

All specifications are subject to change without prior notice.
