30kW Biogas Genset,Biogas Generator Set,China Biogas Genset Exporter

Recommended Operation Conditions

1. CH4 Content of Gas ≥ 45%
2. Gas Pressure ≥ 3 kPa
3. Calorific Value ≥ 16 MJ/m³
4. H2S Content of Gas ≤ 20 mg/m³
5. Total Sulphur Content of Gas ≤ 460 mg/m³
6. Altitude ≤ 4,000 m
7. -25℃ ≤ Ambient Temperature ≤ +50℃

Advantages & Features

1. Prompt dynamic response similar to diesel genset
2. Our 30kW biogas genset enjoys excellent power generation efficiency
3. This biogas generator set is adaptable for a wide range of gas pressure
4. Reliable manual control model

Specification & Configuration

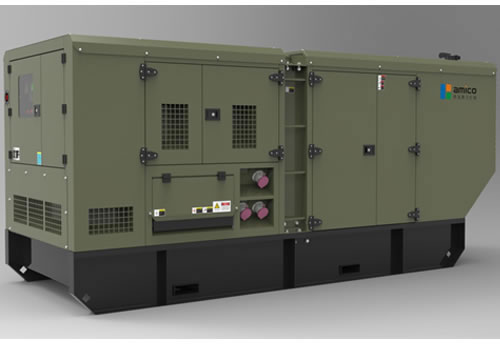

30kW Biogas Genset
Model	AMC30GF-PZ
Prime Power	30 kW (37.5 kVA)
Rated Voltage	230/400 V
Rated Current	54.1 A
Rated Frequency	50 or 60 Hz
Power Factor	0.8
Gas Consumption	0.53 Nm³/kWh
Weight	780 kgs
Overall Size (L × W × H)	1,720 × 820 × 1,250 mm
Engine
Brand	Dongfeng
Model	NQ100N
Type	4-cylinder, 4-stroke, naturally aspirated
Displacement	3.759L
Compression Ratio	10.5
Ignition	Electric control, independent ignition
Fuel Control	Equivalent combustion, closed-loop control
Speed Governing	Electric Control
Rated Speed	1500 rpm
Conversion Efficiency	34.2%
Alternator
Brand	Faraday
Model	FD2C1-4
Type of Excitation System	Brushless with AVR
Connection Type	3-Phase, 4-Line
Conversion Efficiency	87.5%
Controller
Brand	HARSEN
Model	GU641B
Type	Manual control
Others
Pedestal, radiator, air filter, muffler, battery and gas pressure reducer are included.
Soundproof equipment, engine oil, coolant and output cable are not included.

All specifications are subject to change without prior notice.
